Flask Vue.js全栈开发|第4章:Vue.js调用API实现用户注册/登录/退出

  • 原创
  • Madman
  • /
  • 2018-11-02 22:51
  • /
  • 0
  • 140 次阅读

flask vuejs 全栈开发-min.png

Synopsis: 前端 Vue.js 如何划分组件,要动态显示 Alert 消息,父组件通过 props 给子组件传值即可。用户登录前后,导航栏上分别显示 Login 和 Logout 按钮,需要使用 store 模式维护一个共同的状态。另外,vue-router 的 beforeEach 可以指定哪些路由需要用户认证

代码已上传到 https://github.com/wangy8961/flask-vuejs-madblog/tree/v0.4 ,欢迎star

1. Vue-Router 导航

1.1 页面布局 Layout

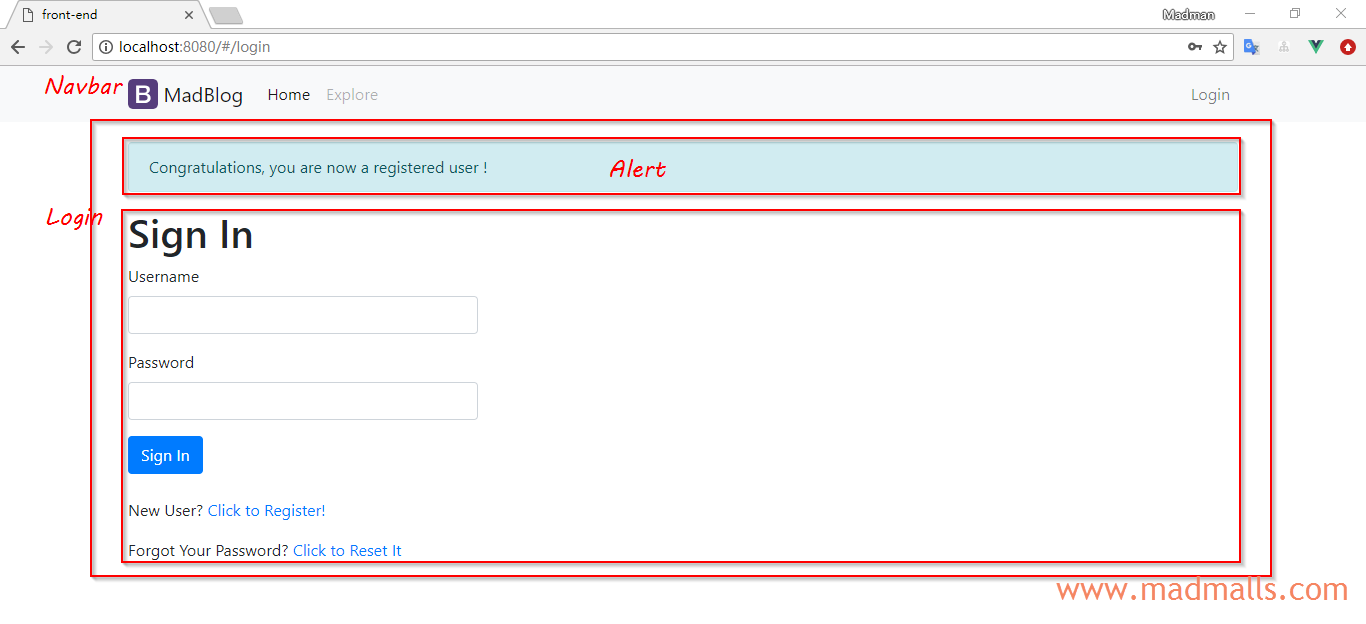

前端的大致页面布局如下:

1 vue layout

内容区域组件包含 Alert 子组件,原因是方便父组件通过 props 给子组件传值。导航栏组件共用,在 front-end/src/App.vue 中引入

创建 front-end/src/components/Navbar.vue

<template>
  <nav class="navbar navbar-expand-lg navbar-light bg-light" style="margin-bottom: 20px;">
    <div class="container">
      <router-link to="/" class="navbar-brand">
        <img src="../assets/bootstrap-solid.svg" width="30" height="30" class="d-inline-block align-top" alt="">
          MadBlog
      </router-link>
      <button class="navbar-toggler" type="button" data-toggle="collapse" data-target="#navbarSupportedContent" aria-controls="navbarSupportedContent" aria-expanded="false" aria-label="Toggle navigation">
        <span class="navbar-toggler-icon"></span>
      </button>

  <div class="collapse navbar-collapse" id="navbarSupportedContent">
        <ul class="navbar-nav mr-auto mt-2 mt-lg-0">
          <li class="nav-item active">
            <router-link to="/" class="nav-link">Home <span class="sr-only">(current)</span></router-link>
          </li>
          <li class="nav-item">
            <a class="nav-link disabled" href="#">Explore</a>
          </li>
        </ul>

        <form class="form-inline navbar-left mr-auto">
          <input class="form-control mr-sm-2" type="search" placeholder="Search">
          <!-- 暂时先禁止提交,后续实现搜索再改回 type="submit" -->
          <button class="btn btn-outline-success my-2 my-sm-0" type="button">Search</button>
        </form>

        <ul class="nav navbar-nav navbar-right">
          <li class="nav-item">
            <a class="nav-link disabled" href="#">Messages</a>
          </li>
          <li class="nav-item">
            <router-link to="/profile" class="nav-link">Profile</router-link>
          </li>
          <li class="nav-item">
            <router-link to="/login" class="nav-link">Login</router-link>
          </li>
        </ul>
      </div>
    </div>
  </nav>
</template>

<script>
export default {
  name: 'Navbar'  //this is the name of the component
}
</script>

在导航栏组件中使用类似于 <router-link to="/login" class="nav-link">Login</router-link> 来导航到登录页面

修改 front-end/src/App.vue

<template>
  <div id="app">
    <navbar></navbar>
    <router-view/>
  </div>
</template>

<script>
import Navbar from './components/Navbar'

export default {
  name: 'App',
  components: {
    navbar: Navbar
  }
}
</script>

<style>
</style>

浏览器 http://localhost:8080/#/ 将看到之前的 Pong! 按钮

1.2 Alert 组件

创建子组件 front-end/src/components/Alert.vue

<template>
  <div class="alert" role="alert" v-bind:class="'alert-' + variant">
    {{ message }}
  </div>
</template>

<script>
export default {
  props: ['variant', 'message']
}
</script>

子组件 Alert.vue 可以接收父组件传递的 variantmessage 数据,下面演示父组件如何动态传递数据给 Alert.vue

创建父组件 front-end/src/components/Home.vue

<template>
  <div class="container">
    <alert
      v-for="(alert, index) in alerts" :key="index"
      v-if="alert.showAlert"
      v-bind:variant="alert.alertVariant"
      v-bind:message="alert.alertMessage">
    </alert>
    <button type="button" class="btn btn-primary">HomePage</button>
  </div>
</template>

<script>
import Alert from './Alert'

export default {
  name: 'Home',  //this is the name of the component
  components: {
    alert: Alert
  },
  data () {
    return {
      alerts: [
        {
          showAlert: true,
          alertVariant: 'danger',
          alertMessage: 0
        },
        {
          showAlert: true,
          alertVariant: 'info',
          alertMessage: 1
        },
        {
          showAlert: true,
          alertVariant: 'dark',
          alertMessage: 2
        }
      ]
    }
  }
}
</script>

front-end/src/components/ 目录下分别创建 Login.vue, Register.vue, Profile.vue,代码在 https://github.com/wangy8961/flask-vuejs-madblog/tree/v0.4

1.3 导航守卫 beforeEach

只有用户登录后才能访问 Home、Profile 等,需要使用 Vue-Routerrouter.beforeEach() 在每次路由前判断是否需要用户验证,关于 "导航守卫" 功能请阅读官方文档 https://router.vuejs.org/zh/guide/advanced/navigation-guards.html

修改 front-end/src/router/index.js

import Vue from 'vue'
import Router from 'vue-router'
import Home from '@/components/Home'
import Login from '@/components/Login'
import Register from '@/components/Register'
import Profile from '@/components/Profile'
import Ping from '@/components/Ping'

Vue.use(Router)

const router = new Router({
  routes: [
    {
      path: '/',
      name: 'Home',
      component: Home,
      meta: {
        requiresAuth: true
      }
    },
    {
      path: '/login',
      name: 'Login',
      component: Login
    },
    {
      path: '/register',
      name: 'Register',
      component: Register
    },
    {
      path: '/profile',
      name: 'Profile',
      component: Profile,
      meta: {
        requiresAuth: true
      }
    },
    {
      path: '/ping',
      name: 'Ping',
      component: Ping
    }
  ]
})

router.beforeEach((to, from, next) => {
  const token = window.localStorage.getItem('token')
  if (to.matched.some(record => record.meta.requiresAuth) && (!token || token === null)) {
    next({
      path: '/login',
      query: { redirect: to.fullPath }
    })
  } else if (token && to.name == 'Login') {
    // 用户已登录,但又去访问登录页面时不让他过去
    next({
      path: from.fullPath
    })
  } else {
    next()
  }
})

export default router

现在客户端如果要访问 http://localhost:8080/#/,会被重定向到 http://localhost:8080/#/login?redirect=%2F 需要先登录验证才行

2. 用户注册

Register.vue 组件代码如下:

<template>
  <div class="container">
    <h1>Register</h1>
    <div class="row">
      <div class="col-md-4">
        <form @submit.prevent="onSubmit">
          <div class="form-group">
            <label for="username">Username</label>
            <input type="text" v-model="registerForm.username" class="form-control" v-bind:class="{'is-invalid': registerForm.usernameError}" id="username" placeholder="">
            <div v-show="registerForm.usernameError" class="invalid-feedback">{{ registerForm.usernameError }}</div>
          </div>
          <div class="form-group">
            <label for="email">Email address</label>
            <input type="email" v-model="registerForm.email" class="form-control" v-bind:class="{'is-invalid': registerForm.emailError}" id="email" aria-describedby="emailHelp" placeholder="">
            <small v-if="!registerForm.emailError" id="emailHelp" class="form-text text-muted">We'll never share your email with anyone else.</small>
            <div v-show="registerForm.emailError" class="invalid-feedback">{{ registerForm.emailError }}</div>
          </div>
          <div class="form-group">
            <label for="password">Password</label>
            <input type="password" v-model="registerForm.password" class="form-control" v-bind:class="{'is-invalid': registerForm.passwordError}" id="password" placeholder="">
            <div v-show="registerForm.passwordError" class="invalid-feedback">{{ registerForm.passwordError }}</div>
          </div>
          <button type="submit" class="btn btn-primary">Register</button>
        </form>
      </div>
    </div>
  </div>
</template>

<script>
import axios from 'axios'

export default {
  name: 'Register', //this is the name of the component
  data () {
    return {
      registerForm: {
        username: '',
        email: '',
        password: '',
        submitted: false,  // 是否点击了 submit 按钮
        errors: 0,  // 表单是否在前端验证通过,0 表示没有错误,验证通过
        usernameError: null,
        emailError: null,
        passwordError: null
      }
    }
  },
  methods: {
    onSubmit (e) {
      this.registerForm.submitted = true  // 先更新状态
      this.registerForm.errors = 0

      if (!this.registerForm.username) {
        this.registerForm.errors++
        this.registerForm.usernameError = 'Username required.'
      } else {
        this.registerForm.usernameError = null
      }

      if (!this.registerForm.email) {
        this.registerForm.errors++
        this.registerForm.emailError = 'Email required.'
      } else if (!this.validEmail(this.registerForm.email)) {
        this.registerForm.errors++
        this.registerForm.emailError = 'Valid email required.'
      } else {
        this.registerForm.emailError = null
      }

      if (!this.registerForm.password) {
        this.registerForm.errors++
        this.registerForm.passwordError = 'Password required.'
      } else {
        this.registerForm.passwordError = null
      }

      if (this.registerForm.errors > 0) {
        // 表单验证没通过时,不继续往下执行,即不会通过 axios 调用后端API
        return false
      }

      const path = 'http://localhost:5000/api/users'
      const payload = {
        username: this.registerForm.username,
        email: this.registerForm.email,
        password: this.registerForm.password
      }
      axios.post(path, payload)
        .then((response) => {
          // handle success
          this.$router.push('/login')
        })
        .catch((error) => {
          // handle error
          for (var field in error.response.data.message) {
            if (field == 'username') {
              this.registerForm.usernameError = error.response.data.message.username
            } else if (field == 'email') {
              this.registerForm.emailError = error.response.data.message.email
            } else if (field == 'password') {
              this.registerForm.passwordError = error.response.data.message.password
            }
          }
        })
    },
    validEmail: function (email) {
      var re = /^(([^<>()\[\]\\.,;:\s@"]+(\.[^<>()\[\]\\.,;:\s@"]+)*)|(".+"))@((\[[0-9]{1,3}\.[0-9]{1,3}\.[0-9]{1,3}\.[0-9]{1,3}\])|(([a-zA-Z\-0-9]+\.)+[a-zA-Z]{2,}))$/;
      return re.test(email);
    }
  }
}
</script>

没有使用 Bootstrap 4 默认的表单验证功能,首先用户单击提交按钮后,会检查各字段是否为空,email 是否合法,如果没有问题才通过 axios 调用后端 POST /api/users 接口。后端会再次验证数据,额外包括检查用户名或邮箱地址是否已经被使用,如果被占用返回 400 错误。然后,axios 处理错误响应,将错误提示信息显示到对应的表单输入框下面:

2 axios 400 error

3. 状态管理

如果注册成功,则会跳转到登录页面。此时期望有 Alert 消息 "Congratulations, you are now a registered user !" 提醒注册成功,则需要跳转前后的两个组件共同维护一个状态 is_new。由于这个项目很简单,所以没有使用 vuex,我们使用 store 来进行状态管理

3 store

创建 front-end/src/store.js

export default {
  debug: true,
  state: {
    is_new: false
  },
  setNewAction () {
    if (this.debug) { console.log('setNewAction triggered') }
    this.state.is_new = true
  },
  resetNotNewAction () {
    if (this.debug) { console.log('resetNotNewAction triggered') }
    this.state.is_new = false
  }
}

注册组件 Register.vue 中要引入 store,当注册成功时,调用 setNewAction

<script>
import store from '../store.js'
...

axios.post(path, payload)
        .then((response) => {
          // handle success
          store.setNewAction()
          this.$router.push('/login')
        })
...

登录组件 Login.vue 中要引入 Alert.vuestore

<template>
  <div class="container">
    <alert
      v-if="sharedState.is_new"
      v-bind:variant="alertVariant"
      v-bind:message="alertMessage">
    </alert>
    ...
</template>

<script>
import Alert from './Alert'
import store from '../store.js'
...

export default {
  name: 'Login',  //this is the name of the component
  components: {
    alert: Alert
  },
  data () {
    return {
      sharedState: store.state,
      alertVariant: 'info',
      alertMessage: 'Congratulations, you are now a registered user !',
      ...
  },
  methods: {
    onSubmit (e) {
      ...
      axios.post(path, {}, {
        auth: {
          'username': this.loginForm.username,
          'password': this.loginForm.password
        }
      }).then((response) => {
          // handle success
          window.localStorage.setItem('madblog-token', response.data.token)
          store.resetNotNewAction()
          this.$router.push('/')
        })
      ...
    }
  }

同理,当用户登录前导航栏上显示 Login,用户登录后显示 Logout,也需要一个共同的状态 is_authenticated

export default {
  debug: true,
  state: {
    is_new: false,
    is_authenticated: window.localStorage.getItem('madblog-token') ? true : false
  },
  setNewAction () {
    if (this.debug) { console.log('setNewAction triggered') }
    this.state.is_new = true
  },
  resetNotNewAction () {
    if (this.debug) { console.log('resetNotNewAction triggered') }
    this.state.is_new = false
  },
  loginAction () {
    if (this.debug) { console.log('loginAction triggered') }
    this.state.is_authenticated = true
  },
  logoutAction () {
    if (this.debug) console.log('logoutAction triggered')
    window.localStorage.removeItem('madblog-token')
    this.state.is_authenticated = false
  }
}

Login.vue 中登录成功后调用 store.loginAction() 设置状态为 true,修改导航栏组件:

<template>
  <nav class="navbar navbar-expand-lg navbar-light bg-light" style="margin-bottom: 20px;">
    <div class="container">
      <router-link to="/" class="navbar-brand">
        <img src="https://getbootstrap.com/docs/4.1/assets/brand/bootstrap-solid.svg" width="30" height="30" class="d-inline-block align-top" alt="">
          MadBlog
      </router-link>
      <button class="navbar-toggler" type="button" data-toggle="collapse" data-target="#navbarSupportedContent" aria-controls="navbarSupportedContent" aria-expanded="false" aria-label="Toggle navigation">
        <span class="navbar-toggler-icon"></span>
      </button>

      <div class="collapse navbar-collapse" id="navbarSupportedContent">
        <ul class="navbar-nav mr-auto mt-2 mt-lg-0">
          <li class="nav-item active">
            <router-link to="/" class="nav-link">Home <span class="sr-only">(current)</span></router-link>
          </li>
          <li class="nav-item">
            <a class="nav-link disabled" href="#">Explore</a>
          </li>
        </ul>

        <form v-if="sharedState.is_authenticated" class="form-inline navbar-left mr-auto">
          <input class="form-control mr-sm-2" type="search" placeholder="Search">
          <!-- 暂时先禁止提交,后续实现搜索再改回 type="submit" -->
          <button class="btn btn-outline-success my-2 my-sm-0" type="button">Search</button>
        </form>

        <ul v-if="sharedState.is_authenticated" class="nav navbar-nav navbar-right">
          <li class="nav-item">
            <a class="nav-link disabled" href="#">Messages</a>
          </li>
          <li class="nav-item">
            <router-link to="/profile" class="nav-link">Profile</router-link>
          </li>
          <li class="nav-item">
            <a v-on:click="handlerLogout" class="nav-link" href="#">Logout</a>
          </li>
        </ul>
        <ul v-else class="nav navbar-nav navbar-right">
          <li class="nav-item">
            <router-link to="/login" class="nav-link">Login</router-link>
          </li>
        </ul>
      </div>
    </div>
  </nav>
</template>

<script>
import store from '../store.js'

export default {
  name: 'Navbar',  //this is the name of the component
  data () {
    return {
      sharedState: store.state
    }
  },
  methods: {
    handlerLogout (e) {
      store.logoutAction()
      this.$router.push('/login')
    }
  }
}
</script>

4. 用户登录

Login.vue 登录组件:

<template>
  <div class="container">
    <alert
      v-if="sharedState.is_new"
      v-bind:variant="alertVariant"
      v-bind:message="alertMessage">
    </alert>
    <h1>Sign In</h1>
    <div class="row">
      <div class="col-md-4">
        <form @submit.prevent="onSubmit">
          <div class="form-group">
            <label for="username">Username</label>
            <input type="text" v-model="loginForm.username" class="form-control" v-bind:class="{'is-invalid': loginForm.usernameError}" id="username" placeholder="">
            <div v-show="loginForm.usernameError" class="invalid-feedback">{{ loginForm.usernameError }}</div>
          </div>
          <div class="form-group">
            <label for="password">Password</label>
            <input type="password" v-model="loginForm.password" class="form-control" v-bind:class="{'is-invalid': loginForm.passwordError}" id="password" placeholder="">
            <div v-show="loginForm.passwordError" class="invalid-feedback">{{ loginForm.passwordError }}</div>
          </div>
          <button type="submit" class="btn btn-primary">Sign In</button>
        </form>
      </div>
    </div>
    <br>
    <p>New User? <router-link to="/register">Click to Register!</router-link></p>
    <p>
        Forgot Your Password?
        <a href="#">Click to Reset It</a>
    </p>
  </div>
</template>

<script>
import axios from 'axios'
import Alert from './Alert'
import store from '../store.js'

export default {
  name: 'Login',  //this is the name of the component
  components: {
    alert: Alert
  },
  data () {
    return {
      sharedState: store.state,
      alertVariant: 'info',
      alertMessage: 'Congratulations, you are now a registered user !',
      loginForm: {
        username: '',
        password: '',
        submitted: false,  // 是否点击了 submit 按钮
        errors: 0,  // 表单是否在前端验证通过,0 表示没有错误,验证通过
        usernameError: null,
        passwordError: null
      }
    }
  },
  methods: {
    onSubmit (e) {
      this.loginForm.submitted = true  // 先更新状态
      this.loginForm.errors = 0

      if (!this.loginForm.username) {
        this.loginForm.errors++
        this.loginForm.usernameError = 'Username required.'
      } else {
        this.loginForm.usernameError = null
      }

      if (!this.loginForm.password) {
        this.loginForm.errors++
        this.loginForm.passwordError = 'Password required.'
      } else {
        this.loginForm.passwordError = null
      }

      if (this.loginForm.errors > 0) {
        // 表单验证没通过时,不继续往下执行,即不会通过 axios 调用后端API
        return false
      }

      const path = 'http://localhost:5000/api/tokens'
      // axios 实现Basic Auth需要在config中设置 auth 这个属性即可
      axios.post(path, {}, {
        auth: {
          'username': this.loginForm.username,
          'password': this.loginForm.password
        }
      }).then((response) => {
          // handle success
          window.localStorage.setItem('madblog-token', response.data.token)
          store.resetNotNewAction()
          store.loginAction()

          if (typeof this.$route.query.redirect == 'undefined') {
            this.$router.push('/')
          } else {
            this.$router.push(this.$route.query.redirect)
          }
        })
        .catch((error) => {
          // handle error
          if (error.response.status == 401) {
            this.loginForm.usernameError = 'Invalid username or password.'
            this.loginForm.passwordError = 'Invalid username or password.'
          } else {
            console.log(error.response)
          }
        })
    }
  }
}
</script>

5. 用户退出

在导航栏中显示 Logout 按钮,绑定单击事件:

<template>
  ...
          <li class="nav-item">
            <a v-on:click="handlerLogout" class="nav-link" href="#">Logout</a>
          </li>
  ...
</template>

<script>
import store from '../store.js'

export default {
  name: 'Navbar',  //this is the name of the component
  data () {
    return {
      sharedState: store.state
    }
  },
  methods: {
    handlerLogout (e) {
      store.logoutAction()
      this.$router.push('/login')
    }
  }
}
</script>

6. 代码提交

$ git add .
$ git commit -m "4. Vue.js调用API实现用户注册/登录/退出"
$ git checkout master
$ git merge dev
$ git branch -d dev

将本地 master 分支代码上传到 Github 代码仓库中的 master 分支:

$ git push -u origin master

打上标签 tag并上传:

$ git tag v0.4
$ git push origin v0.4

代码已上传到 https://github.com/wangy8961/flask-vuejs-madblog/tree/v0.4 ,欢迎star

未经允许不得转载: LIFE & SHARE - 王颜公子 » Flask Vue.js全栈开发|第4章:Vue.js调用API实现用户注册/登录/退出

分享

作者

作者头像

Madman

如果博文内容有误或其它任何问题,欢迎留言评论,我会尽快回复; 或者通过QQ、微信等联系我

0 条评论

暂时还没有评论.

发表评论前请先登录
